Forging

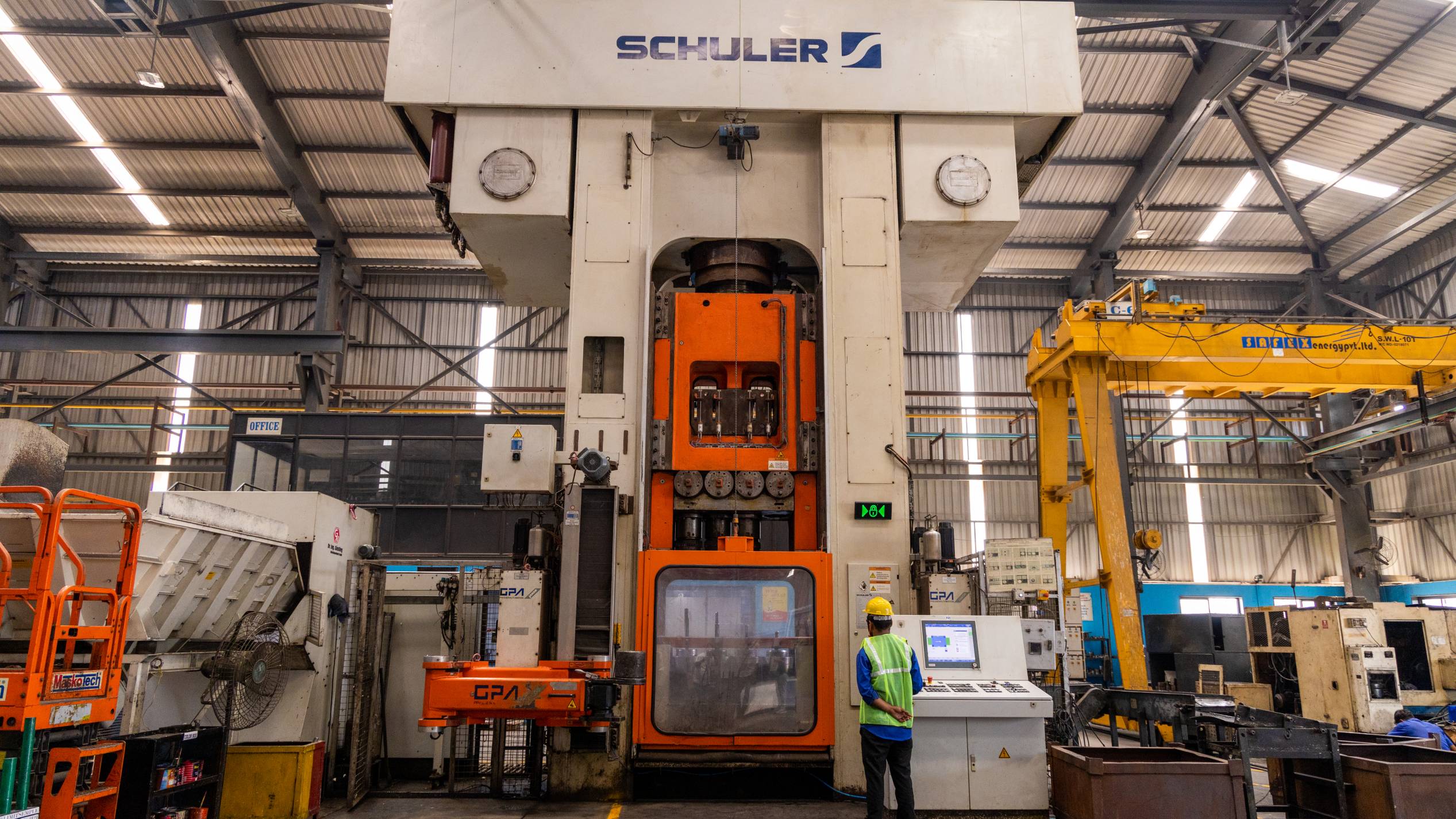

COLD FORGING

900 T and 2500 T fully automatic hydraulic presses of Schuler make , equipped with 4 stations.

Latest technology to produce shafts and pinions efficiently with a productivity rate of 6 to 8 parts per minute.

Capabilities:
Max Weight: 17kg

Advantages:
Material savings of 10-15%, Reduced energy costs, near-net forging, minimum machining allowance, improved grain flow and mechanical properties, high productivity

HOT FORGING

    Closed-Die Forging

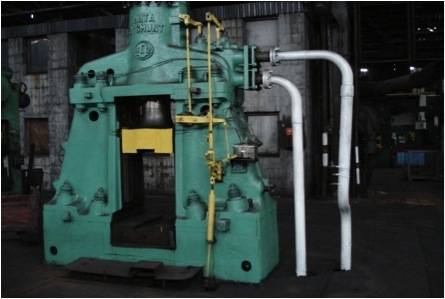

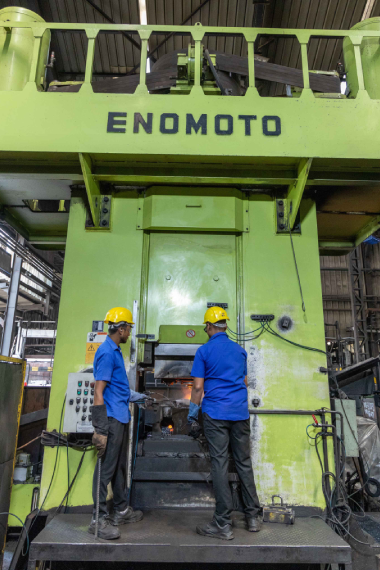

  • Hammer Shop

    Pneumatic drop closed die forging hammers (1 to 5 tons capacity) for producing automotive and general engineering forgings (up to 150 kg), and custom specifications.

  • Upsetters

    2” (400T) to 6” (1200T)

  • Mechanical & Screw Presses

    800 T, 1000 T, 1600 T, and 2500 T

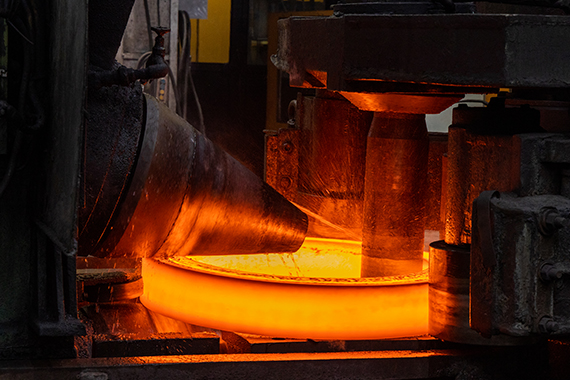

RING ROLLING

1000 Ton Press:
Hydraulic open forging press with mobile manipulators (up to 5 tons capacity) for manufacturing ring rolling blanks and open forged discs (up to 2500 mm dia).

2500 Ton Press:
Fully automatic 3-station hydraulic press with robotic arm for profile-shaped close die blanks and closed die forgings (up to 350 kg).

Ring Rolling Machine:
Numerically controlled axial and radial ring rolling machine (63/80 tons capacity) for producing rectangular and profile rings (up to 2.5 meters dia) and flanges (up to 80”).

UPCOMING EQUIPMENTS

  • 1600 T Cold Forging Press
  • New Ring Rolling Line up to 500mm Dia OD - Plant 2
  • 3000 T Warm Forging Press with inbuild automation
